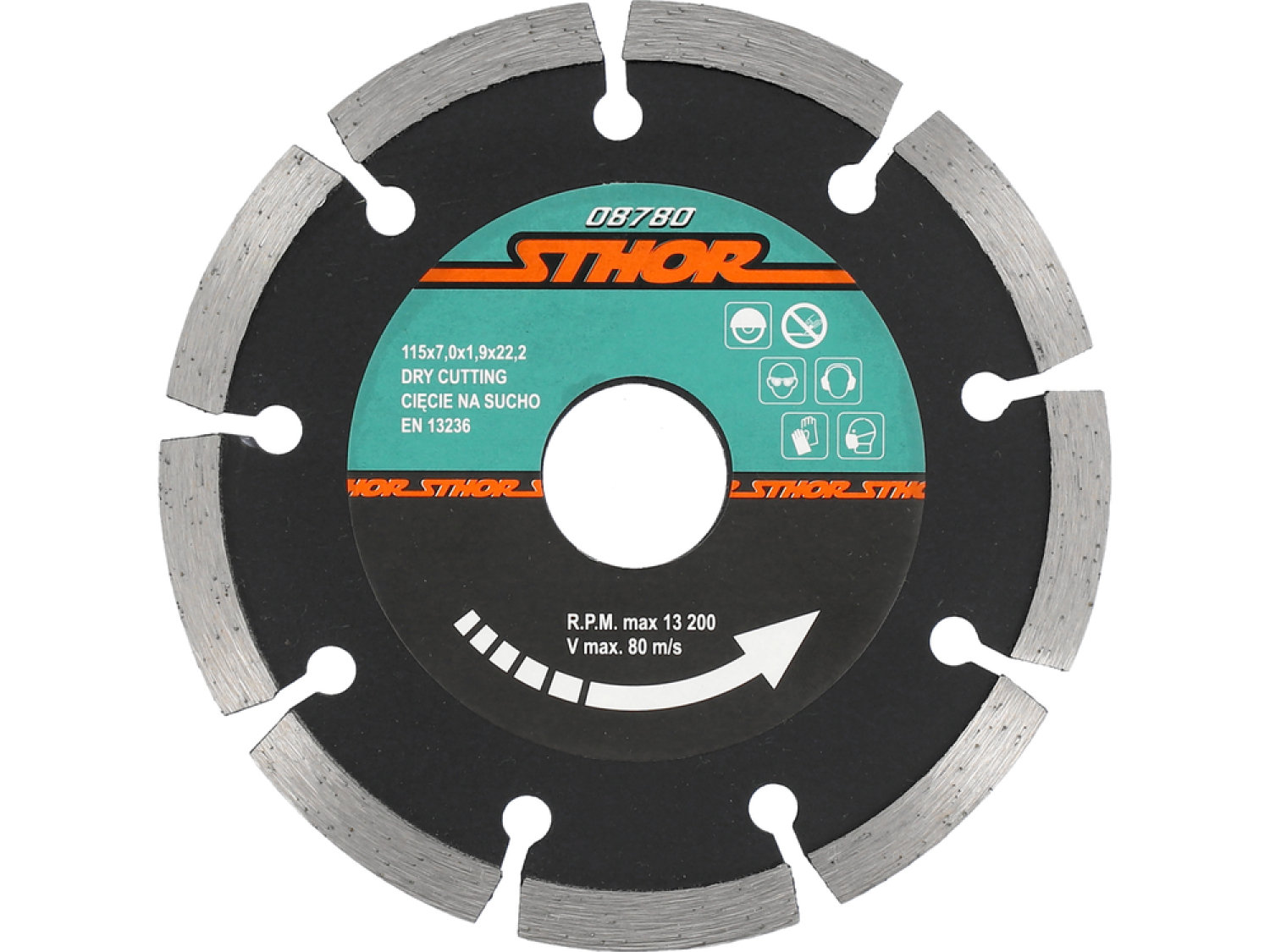

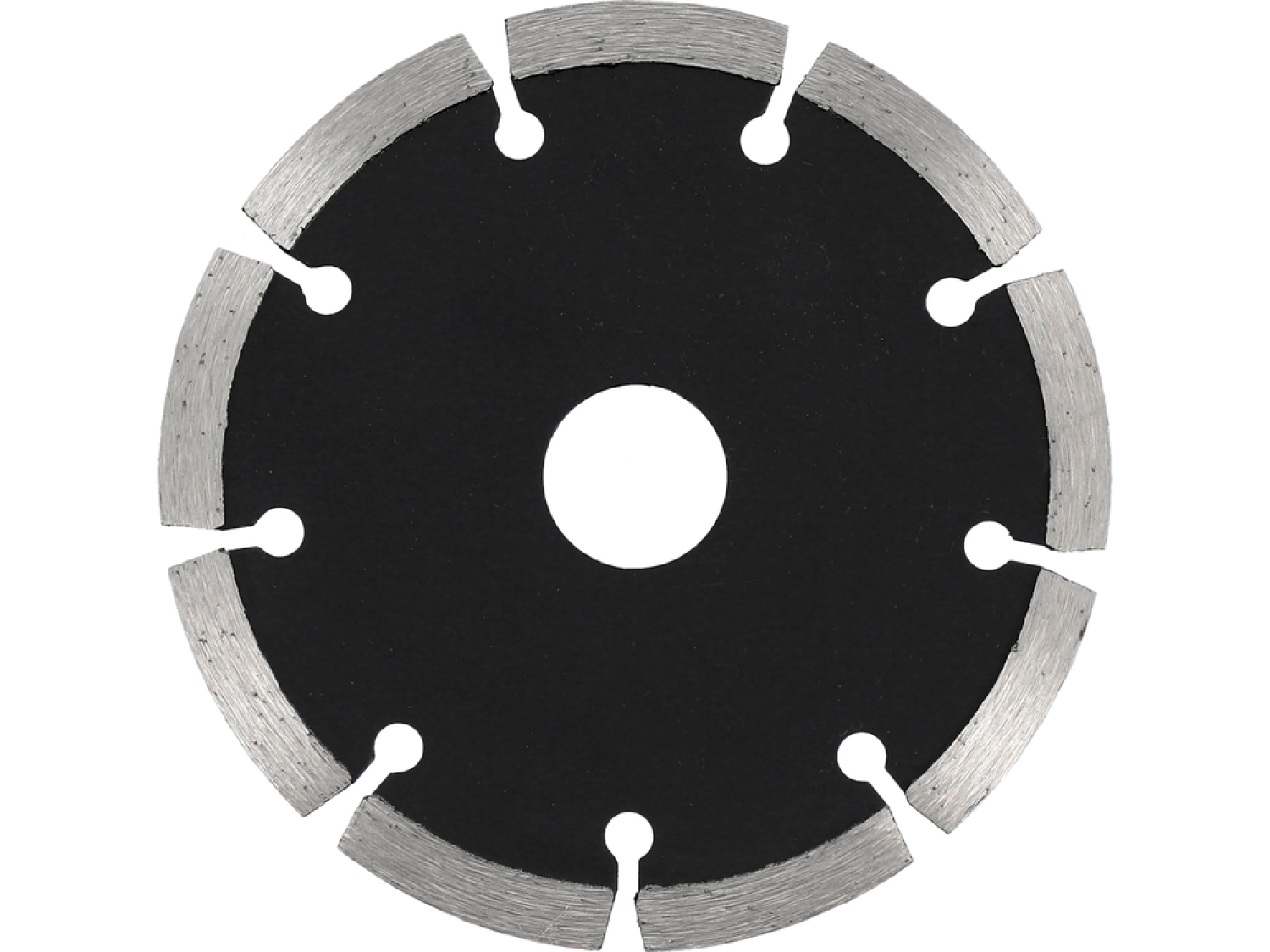

DIAMOND BLADE, SEGMENTED 115MM 08780 STHOR

Diamond Blade for angle grinders by STHOR, model code 08780.

• Equipped with 7 mm height and 1.9 mm thickness segments.

This blade is specifically designed for "dry" cutting work.

It is recommended for cutting various materials including ceramics, concrete, stone, and brick.

• Recommended rotation speed is approximately 13200/min.

• Series: GRD
• Diameter: 115 mm
• Max. rotations: 13200 min⁻¹
• Max. disc linear velocity: 80 m/s
• Metal disc thickness: 1.2 mm
• Mounting hole diameter: 22.2 mm
• Cutting segment thickness: 1.9 mm
• Cutting segment height: 7 mm
• Material: steel 65Mn
• Working part material: Fe 30%, Su 50%, Sn 10%, Ni 5%, Co 5%, diamond coating 12%
• Work type: dry
• Application: concrete, brick, stone, granite, glaze
