Table wet tile saw 1500 W 250×25.4 mm blade laser YT-821597 Yato

About YATO

YATO is a professional tool brand trusted by tilers, builders, and interior fit-out crews. Its solutions focus on robust construction, ergonomics, and safe, precise performance under daily workloads.

Brief description

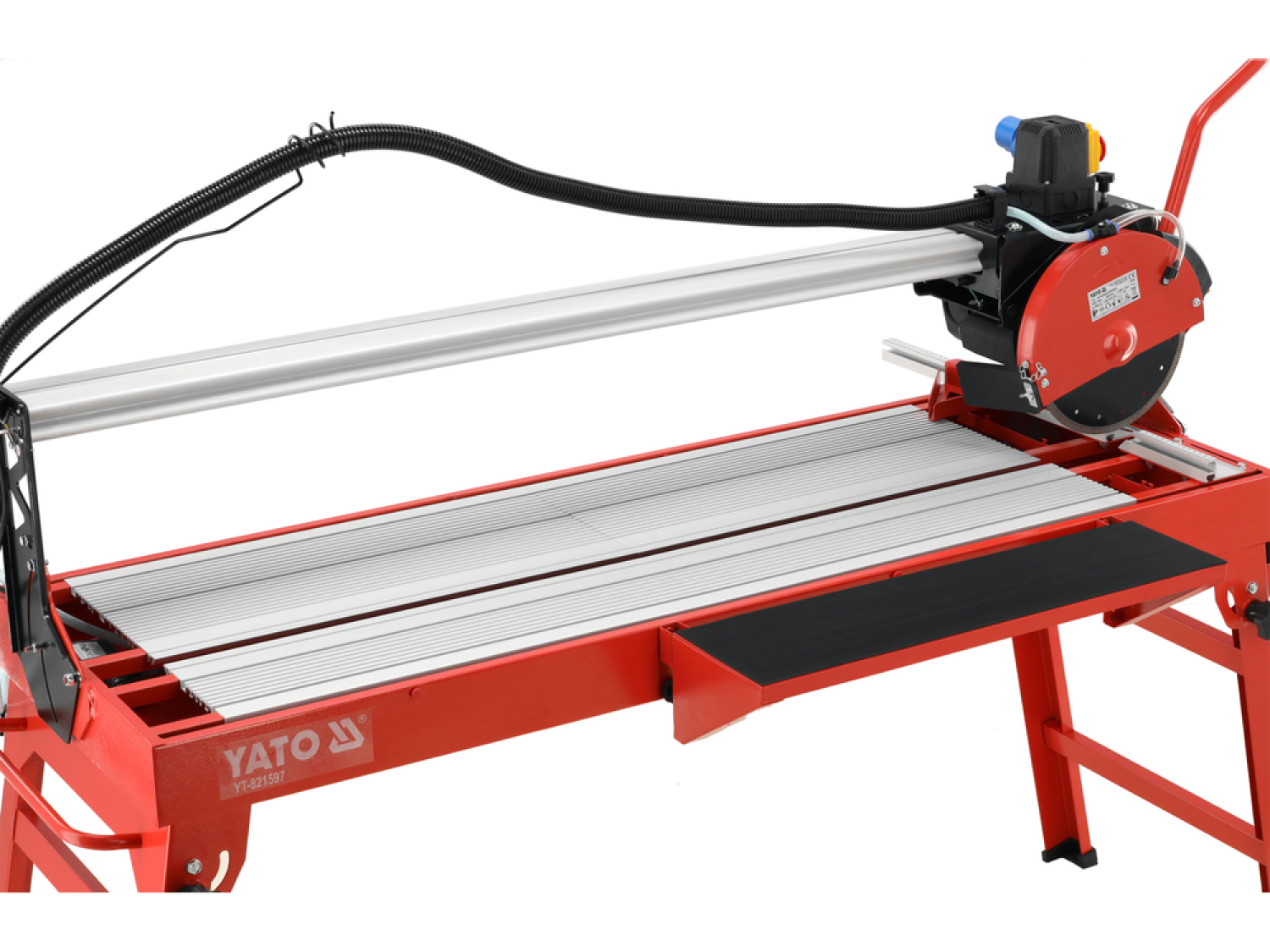

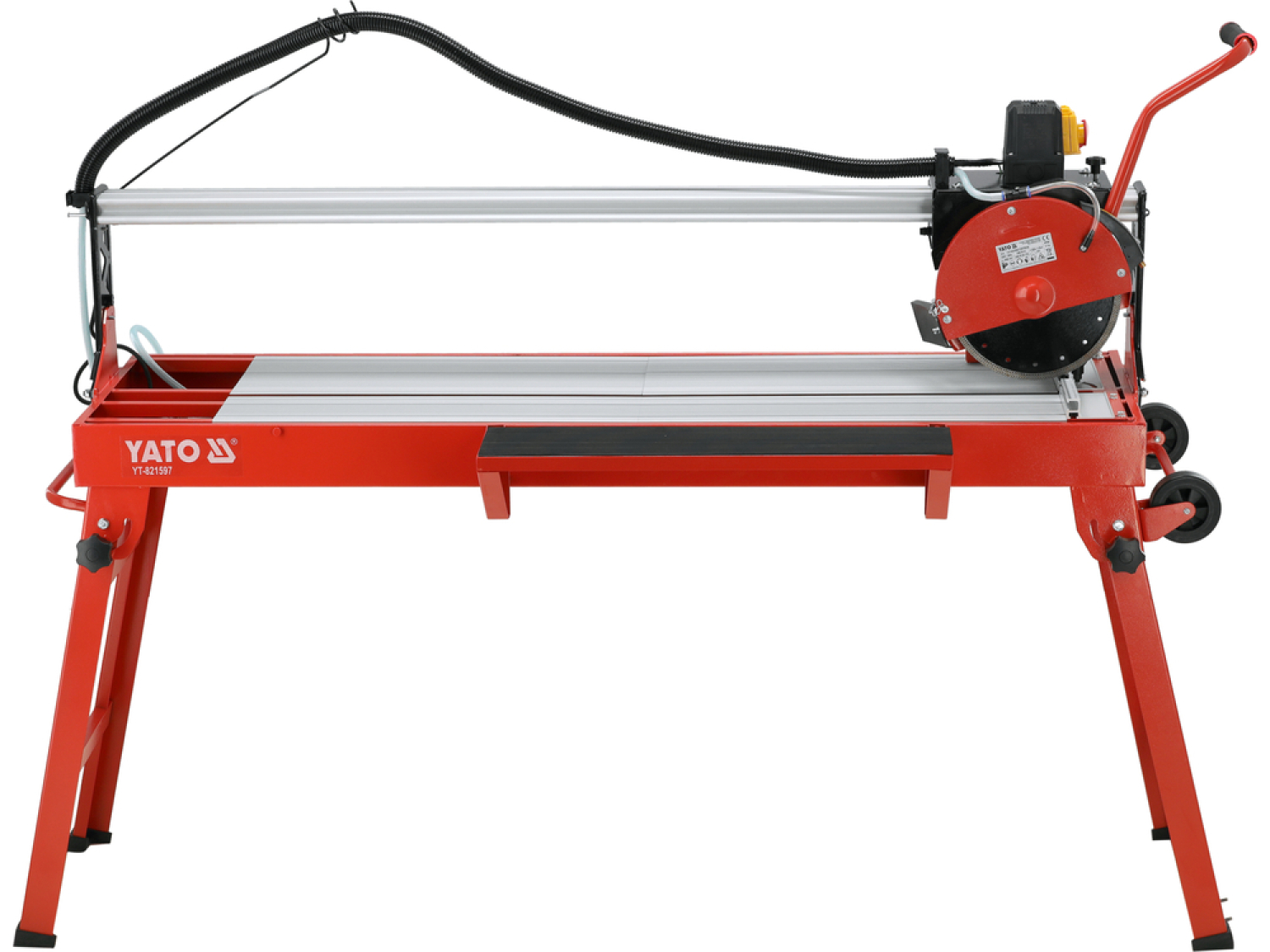

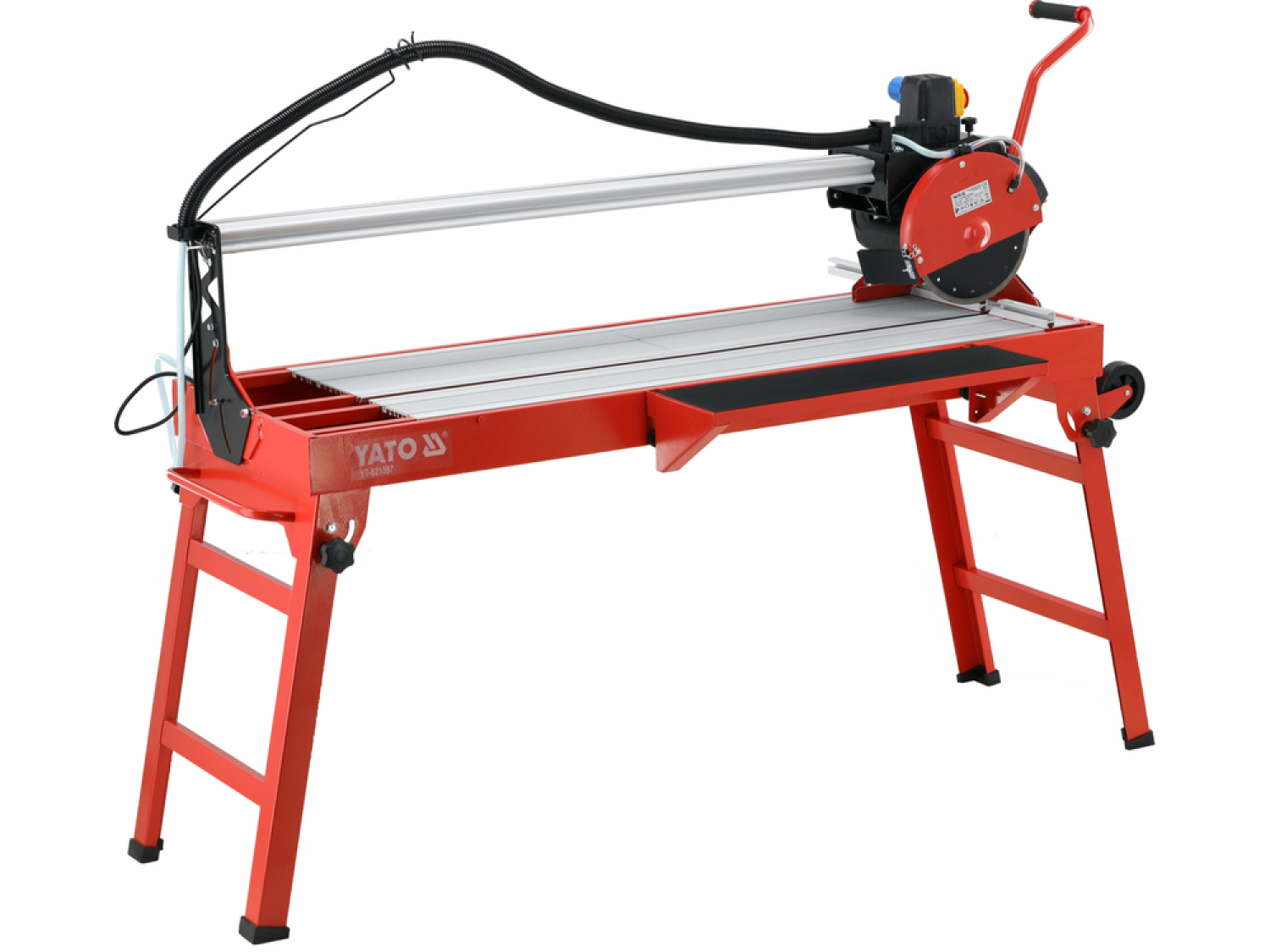

The YATO YT-821597 table wet tile saw is a water-cooled cutter with a guide rail and laser pointer, designed for diamond-blade cutting of ceramic materials: tiles, glazed tiles, porcelain stoneware, and terracotta. A rigid work table with an additional extension top lets you handle large-format pieces up to 1200 × 600 mm. The laser-defined cut line and longitudinal guide rail deliver accurate results without pre-scribing, while 0–45° angle adjustment simplifies mitres and trim cuts.

Key features

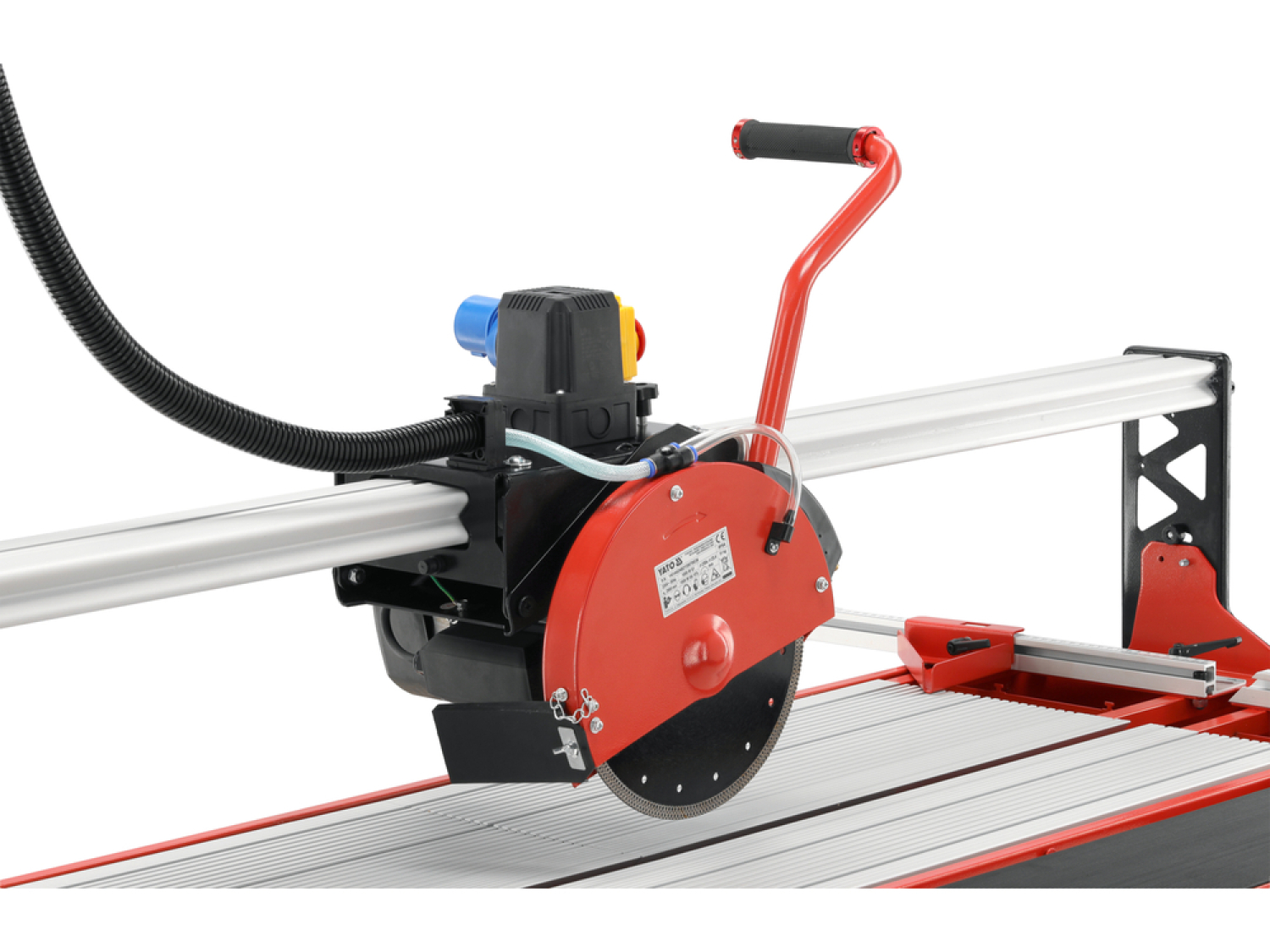

• Accurate cutting without scribing — laser line + guide rail for straight and bevel cuts.

• Clean diamond cutting — up to 2990 rpm, burr-free, straight and at 45°.

• Full adjustability — variable length, depth, and angle; the saw head also moves on the vertical axis.

• Wet operation — water pump and hose included for blade cooling and dust suppression.

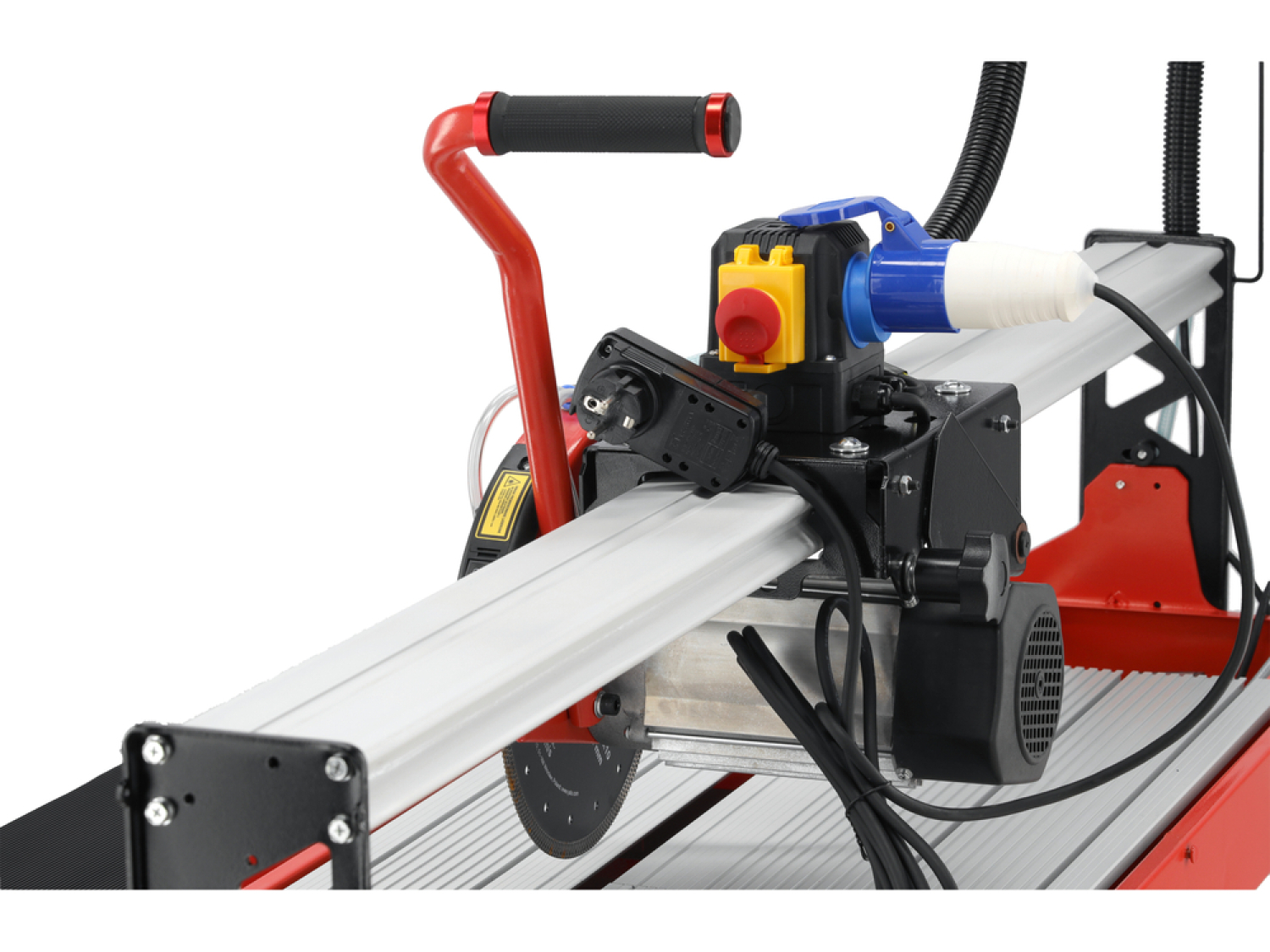

• Safety & control — blade guard and residual-current device (RCD).

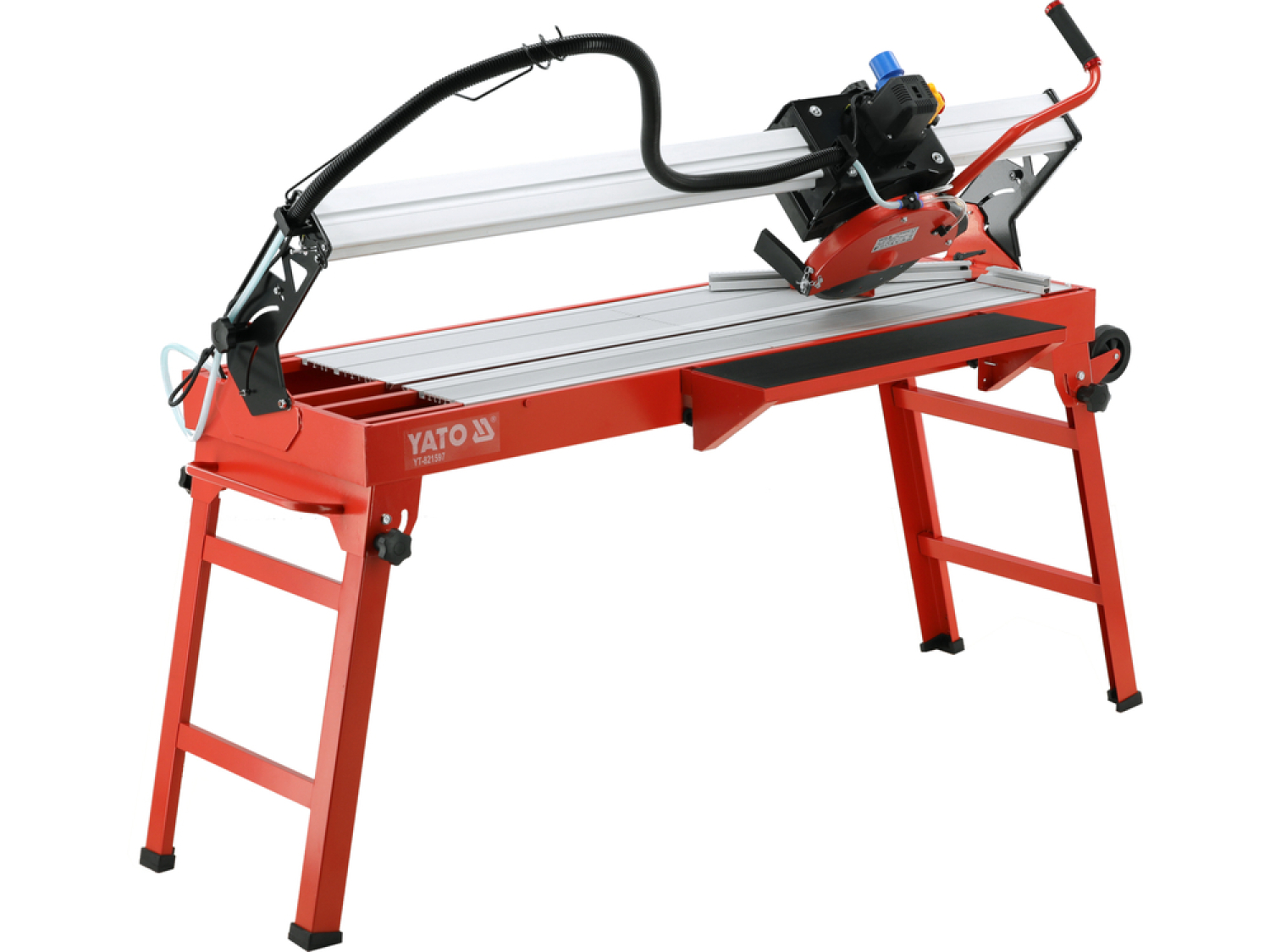

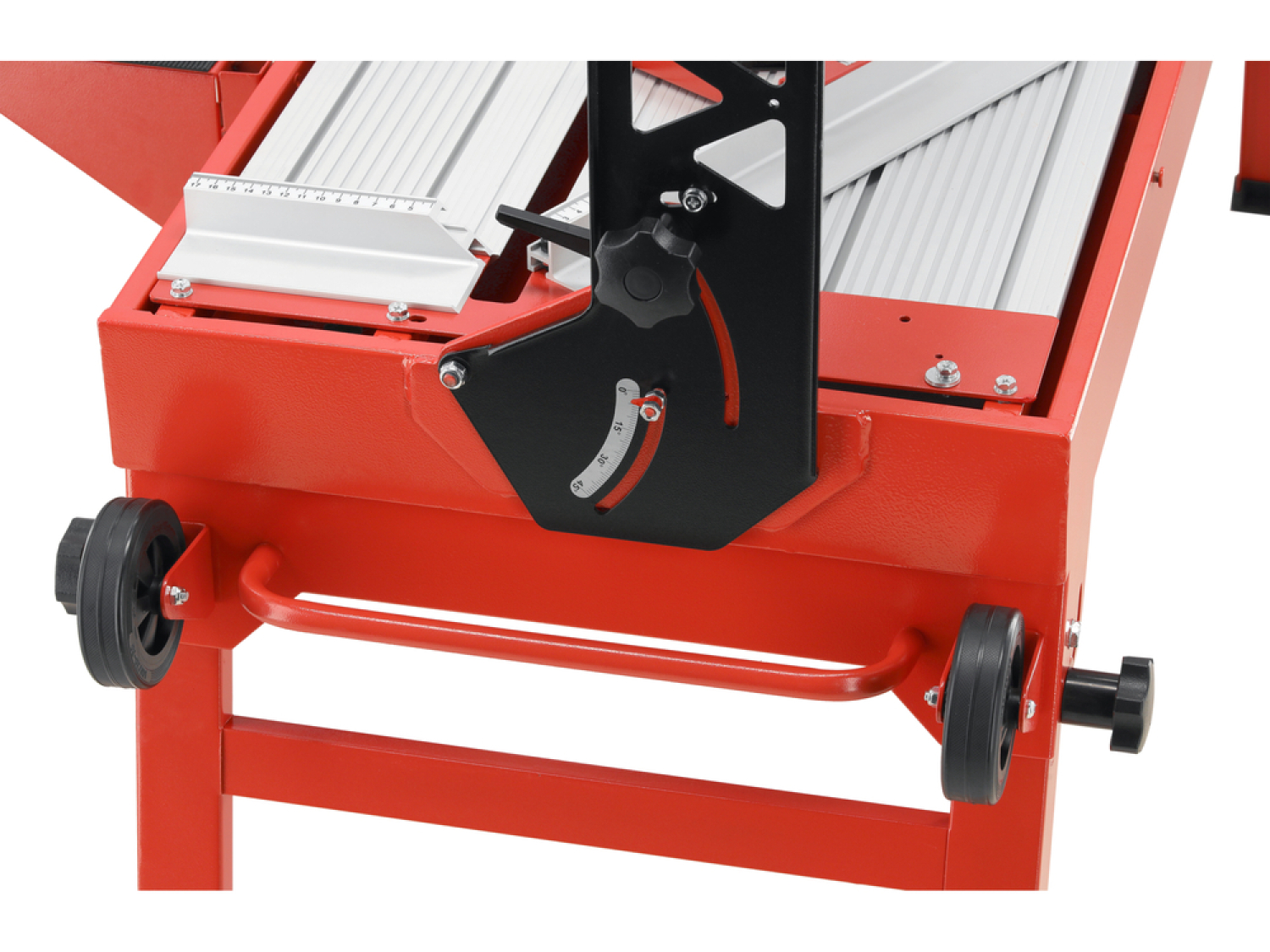

• Site mobility — 4 folding legs with locking knobs, large wheels, and transport handle.

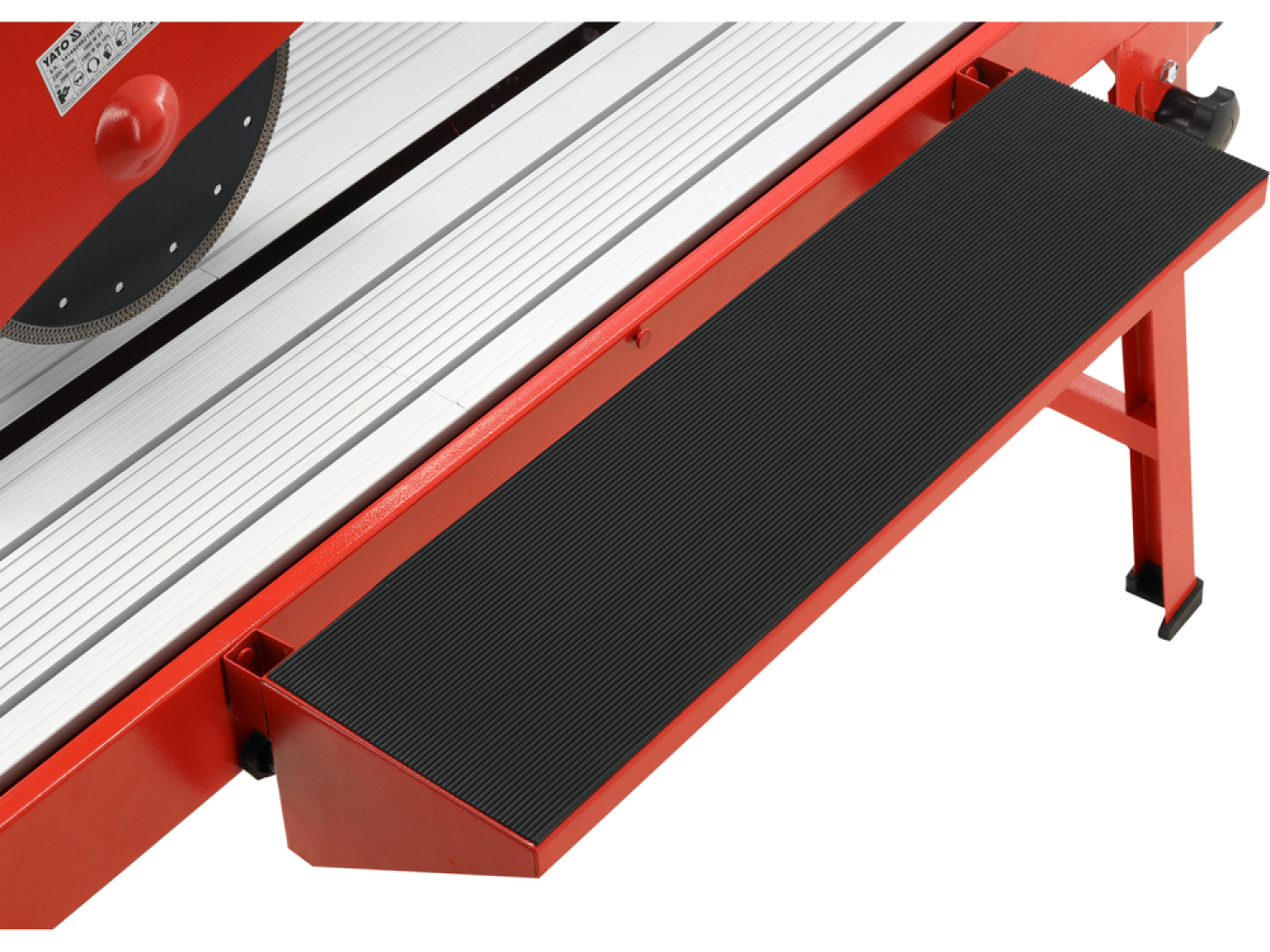

• Duralumin table top — stiff, lightweight, corrosion-resistant; extra table top enlarges the support area.

• Max cutting length 1250 mm; depth 50 mm (90°) / 37 mm (45°).

Technical specifications

• Series: GRF

• Model / code: YT-821597

• Power: 1500 W

• No-load speed: 2990 min⁻¹

• Voltage / frequency: 230 V a.c., 50 Hz

• Max cutting length: 1250 mm

• Blade Ø (outer / bore): 250 mm / 25.4 mm

• Max cutting depth: 50 mm (at 90°), 37 mm (at 45°)

• Cutting angle: 0–45°

• Work type: dry, wet (damp)

• Laser: yes (Class 2, ≤1 mW, 655 nm, power 2× 1.5 V AAA)

• Working table dimensions: 1000 × 460 mm

• Table material: duralumin (aluminium alloy)

• Electrical insulation class: I

• Protection grade: IP54

• Acoustic pressure: 85.0 ± 3.0 dB(A)

• Acoustic power: 98.0 ± 3.0 dB(A)

• Vibration: < 2.5 m/s²

• Weight: 51 kg

Why buy / what makes it different?

• Large-format capability — main table plus extension supports tiles up to 1200 × 600 mm.

• Consistent precision — guide rail and laser speed up setup and reduce errors.

• Durability & ergonomics — duralumin table, rigid frame, folding legs and wheels for easy transport.

• Safety-first design — RCD, blade guard, IP54 protection, and Class I insulation.

Included in the box

• YATO YT-821597 table wet tile saw

• Guide rail and laser module (power: 2× AAA)

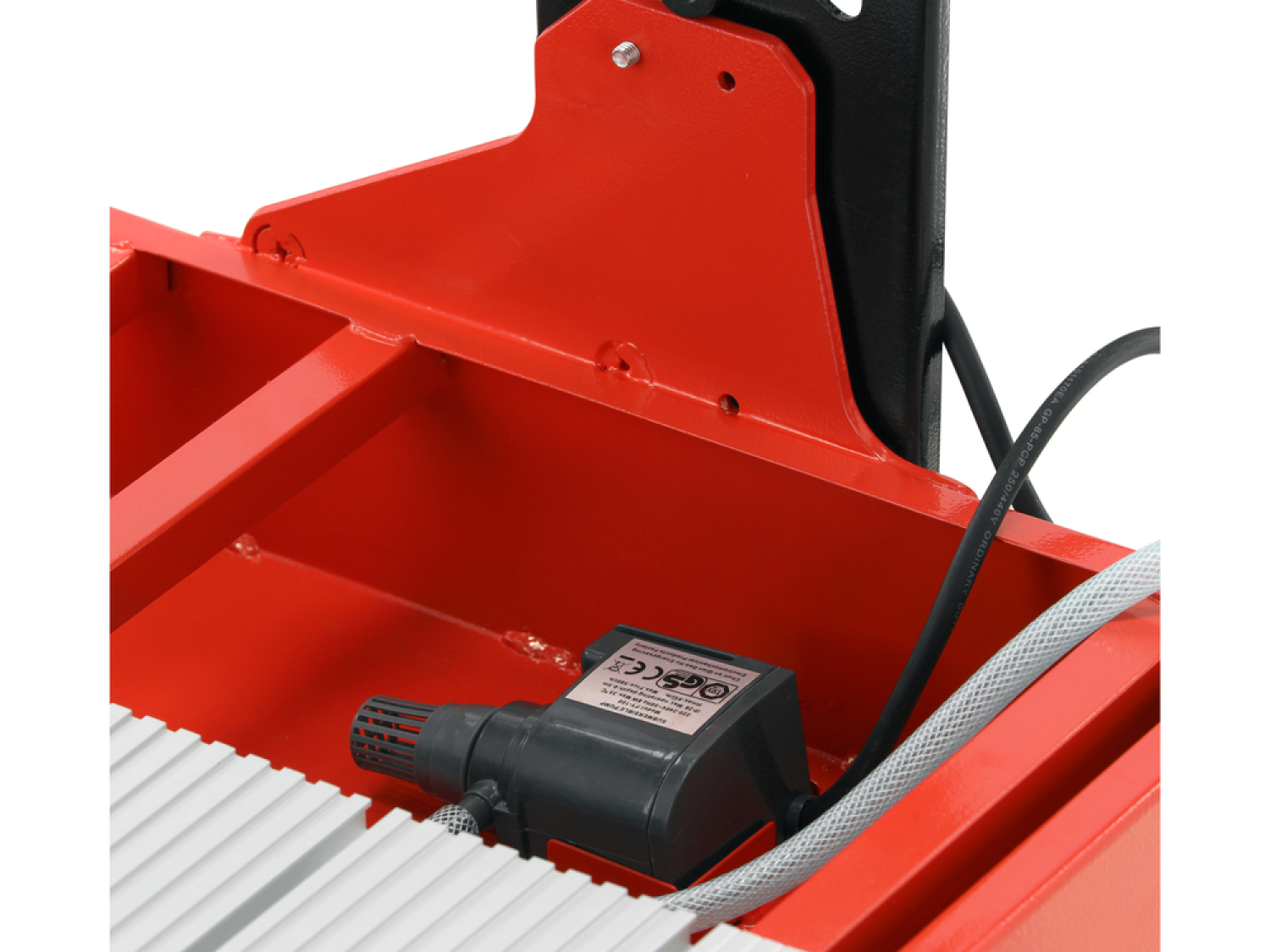

• Water pump with hose

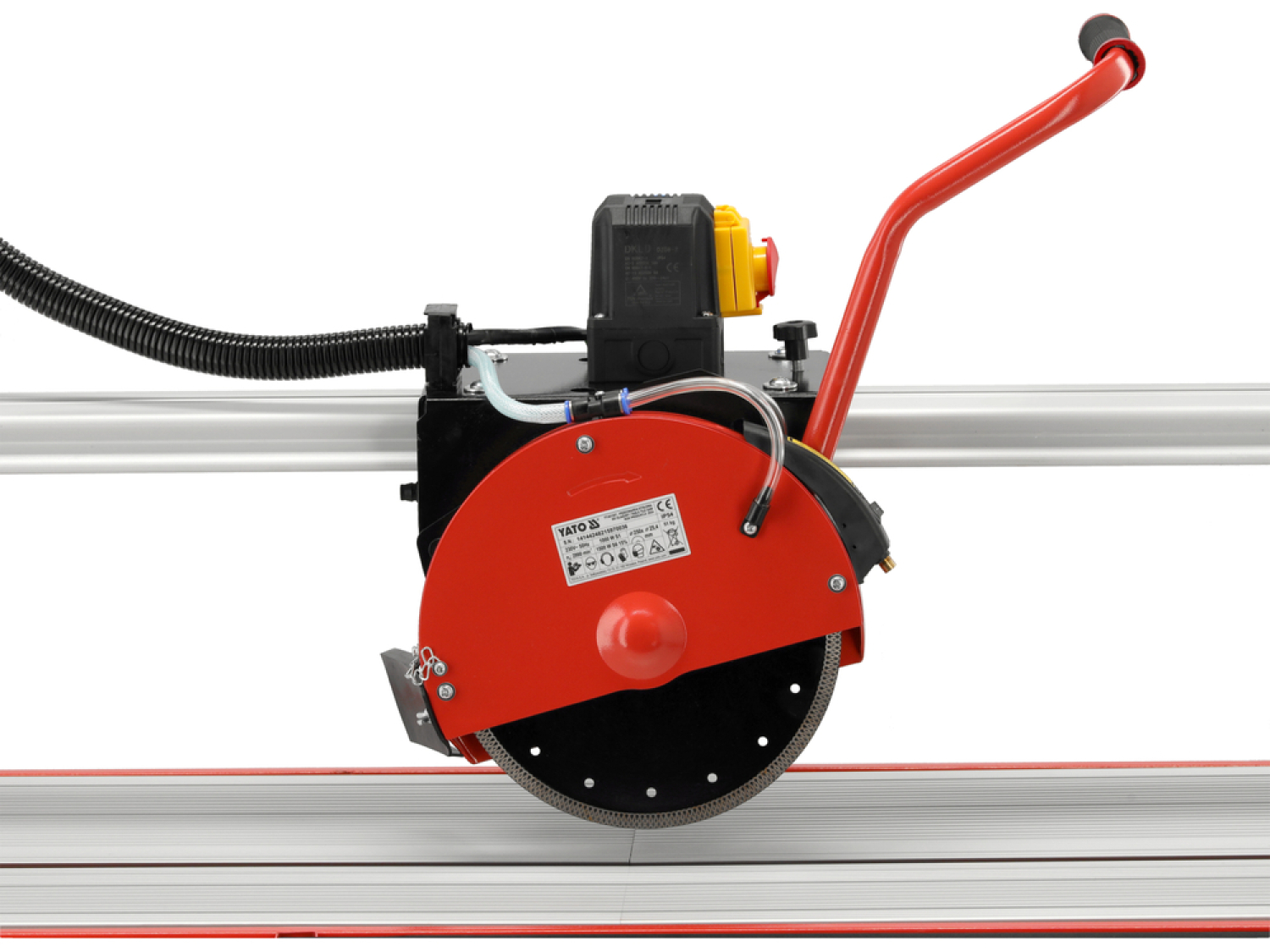

• Blade guard

• 4 folding legs with locks

• Transport handle and large wheels

Note: 250 × 25.4 mm diamond blade is the operating size; included accessories may vary by market.

Usage warnings

• ⚠️ Laser (Class 2, 655 nm, ≤1 mW): do not stare into the beam; avoid eye exposure.

• Check RCD and main switch before operation.

• Wear PPE: safety glasses, hearing protection, gloves; use non-slip footwear.

• For wet cutting, ensure adequate water flow to prevent blade overheating and dust.

• Disconnect from mains before maintenance or blade changes.

Usage tips

1. Set cut length and guide, switch on the laser and verify line alignment.

2. Fill/prime the pump or connect water, confirm steady flow onto the blade.

3. Support the tile securely on the table and extension; apply gentle feed — let the blade cut.

4. Bevels (0–45°): set head/table angle and make a test cut on offcuts.

5. After work, rinse table and blade, power off, dry components, and fold legs for transport.
