Līmes pistole Ø11mm 72W

Temperature Glue Gun Ø11mm 72W 73051 by LUND

This high-quality hot melt glue gun from LUND is ideal for various bonding tasks.

The LUND 73051 model is a superb choice for demanding users, offering excellent technical specifications and high-quality craftsmanship.

With this glue gun, you can bond a variety of materials, including wood, plastics, metals, ceramics, glass, textiles, and leather. It is also great for modeling, fixing, repairing, sealing, and grouting.

The glue flow speed can be adjusted based on the user's pressure. It supports glue sticks with a diameter of 11 mm and 11.2 mm.

Specifications:

• Rated voltage: 230 V
• Rated frequency: 50 Hz
• Rated power: 12/72 W
• Operating temperature: 190 - 210 °C
• Heating time: 3 - 5 minutes
• Glue capacity: 7 g/min
• Glue stick diameter: 11 and 11.2 mm
• Weight: 0.15 kg
• Protection rating: IPX0
• Electric insulation class: II

Usage Instructions

• Place the glue gun on a stand, positioning it under the outlet tip onto a piece of cardboard.
• Switch on the power supply and wait for the heating element to warm up.
• Insert the glue cartridge until the glue begins to flow out of the outlet tip, then apply glue to one of the surfaces to be bonded.
• Ensure that the surfaces to be bonded are clean, dry, and free of grease.
• Press the glued surfaces together and wait, as the joint will be ready in approximately 1 - 2 minutes.

For larger surfaces, a "spot" bonding technique is recommended. Foam products, such as polystyrene, can be glued only if they have a protective lining. Do not apply glue directly onto foam products! When bonding textiles or similar materials, apply the glue in an "S" pattern.

Package Contents

• Glue gun

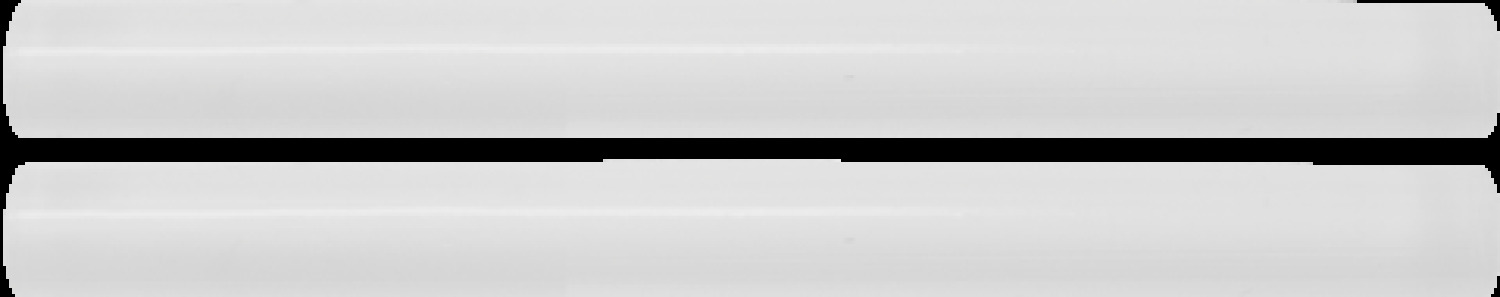

• 2 glue cartridges
• Operating instructions
• Guarantee card
