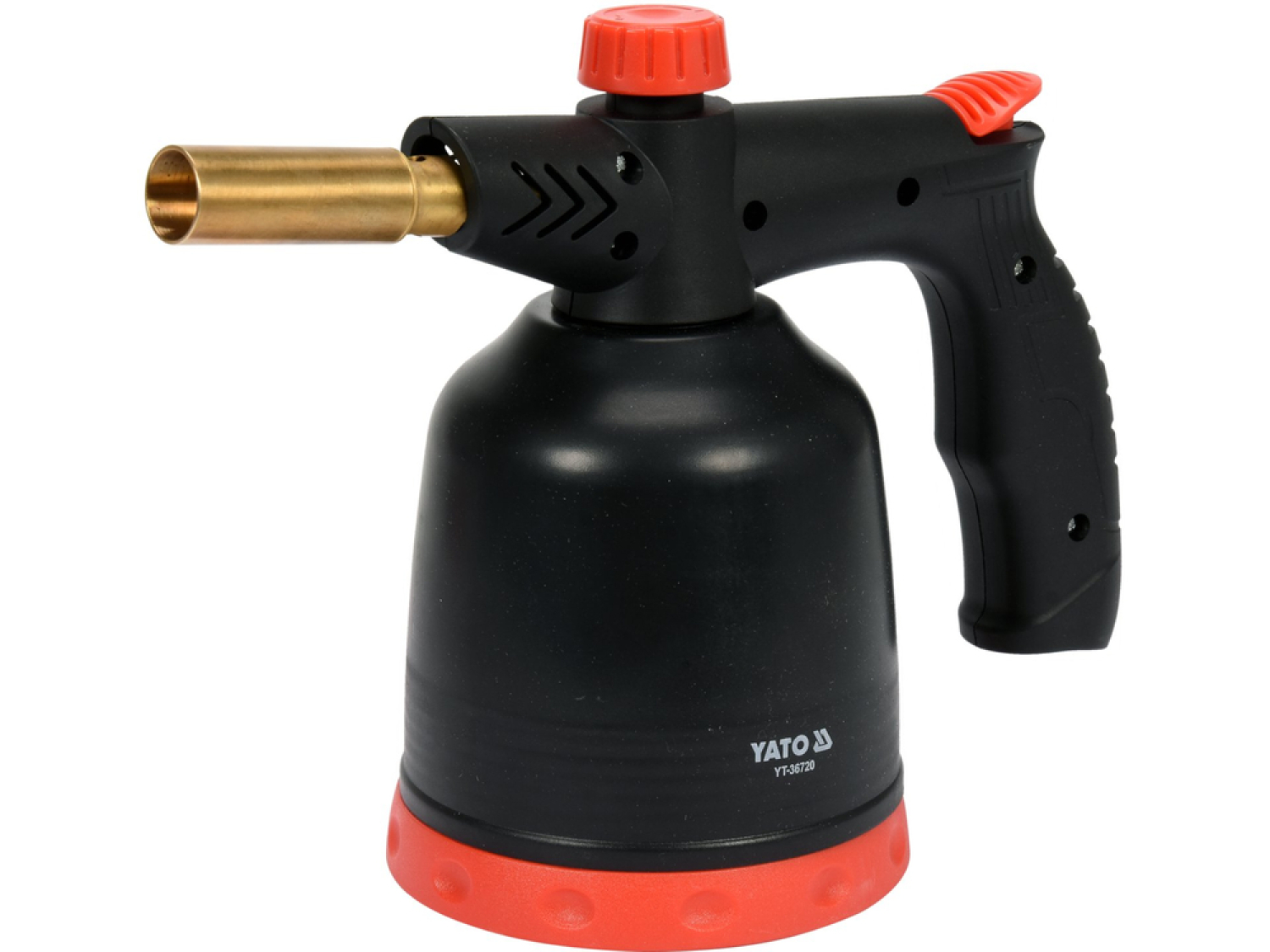

Gas Burner / Soldering Lamp YT-36720 YATO

The YATO YT-36720 gas soldering lamp is designed for soldering, heating, and drying. It provides a convenient power supply through gas cartridges, allowing for work in locations without access to electricity.

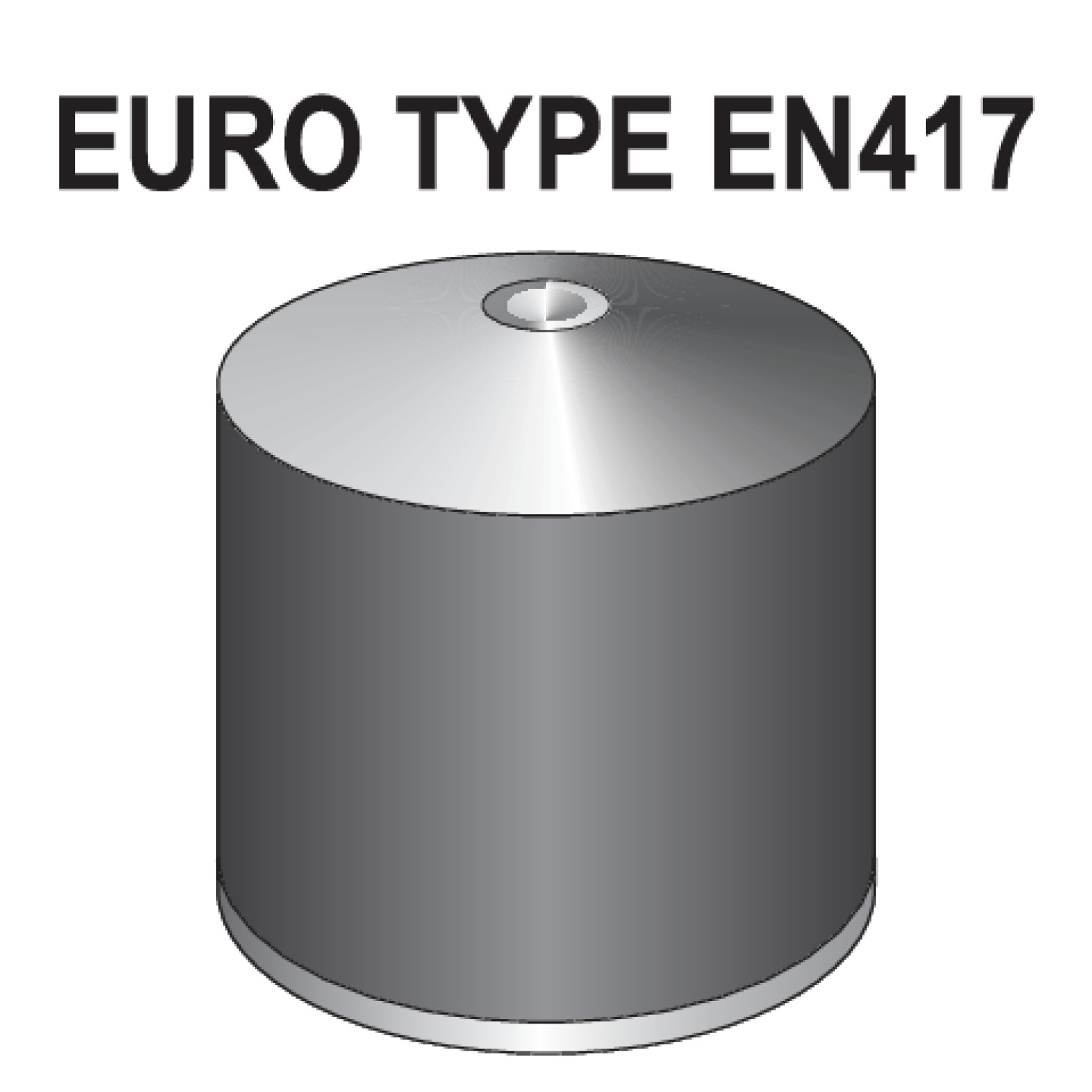

This burner is compatible with 190 g disposable containers that feature a punctured membrane and comply with EN 417 standards.

Additional information:

• Durable plastic housing protects against burns.
• Easy-to-use pistol grip with a flow control knob positioned vertically above the cylinder.
• Brass burner with a diameter of 19 mm.
• Features an effective piezo igniter.

• Constructed from brass.



  Usage warnings:


  Use only with disposable containers containing technical butane gas, equipped with a self-sealing connector, and compliant with EN 417. Ensure usage in well-ventilated areas. Read the instructions before use. Make connections or modifications to containers in a flameless atmosphere, away from bystanders. Safety glasses should be worn during operation. To turn off the burner, rotate the control knob fully towards the "OFF" position; the flame will extinguish automatically. Be cautious, as the metal parts of the burner will be hot after use. Allow to cool before handling.

• Series: GRD
• Power: 1.7 kW
• Tank capacity: 190 g
• Gas type: butane from an external cylinder
• Gas tank type: under direct pressure, type EN417
• Gas usage: 123 g/h
• Casing material: PVC
• Piezo ignition: yes

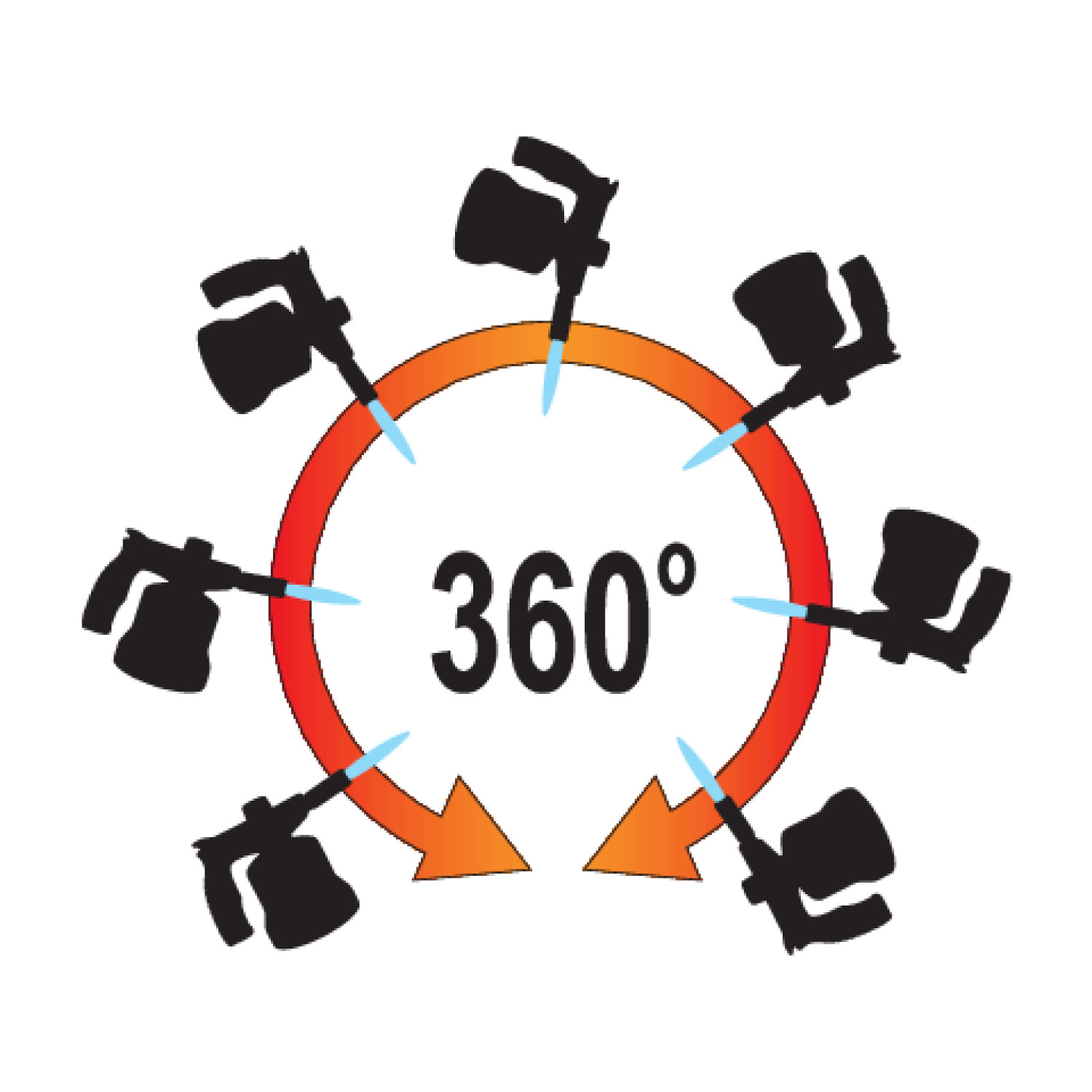

• Operation angle: 360 ˚
• Head offset: 360 ˚
• Flame adjustment: yes
• Weight with empty tank: 0.7 kg
• Applications: soft soldering, tinning, heating, loosening screws, paint tanning, unfreezing, annealing, shaping or bending pipes, lighting the grill, gastronomy
