  2. Tools
  3. Pneumatic tools
  4. Nailers
*The image is illustrative and the product may differ from the one shown in the image

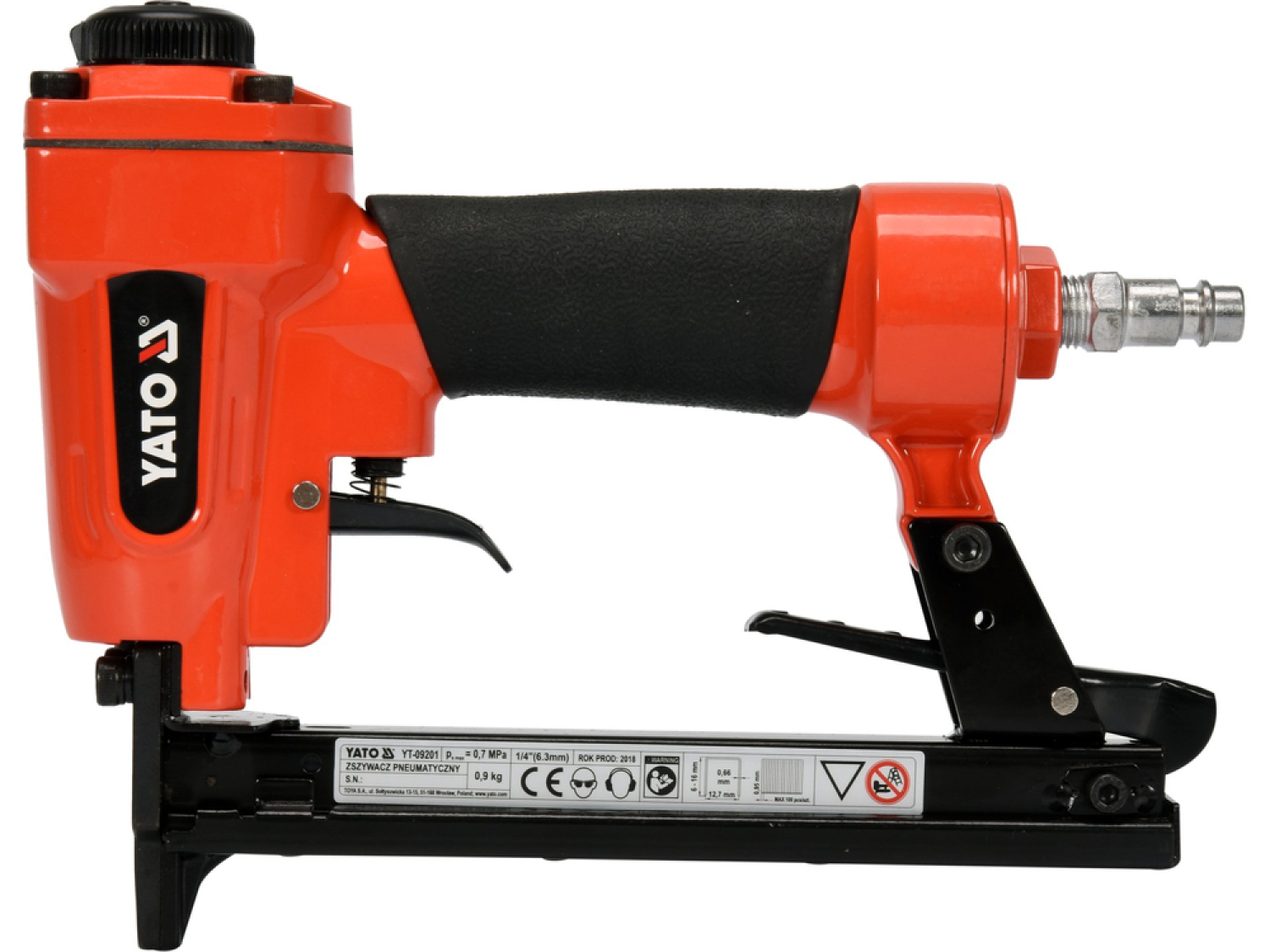

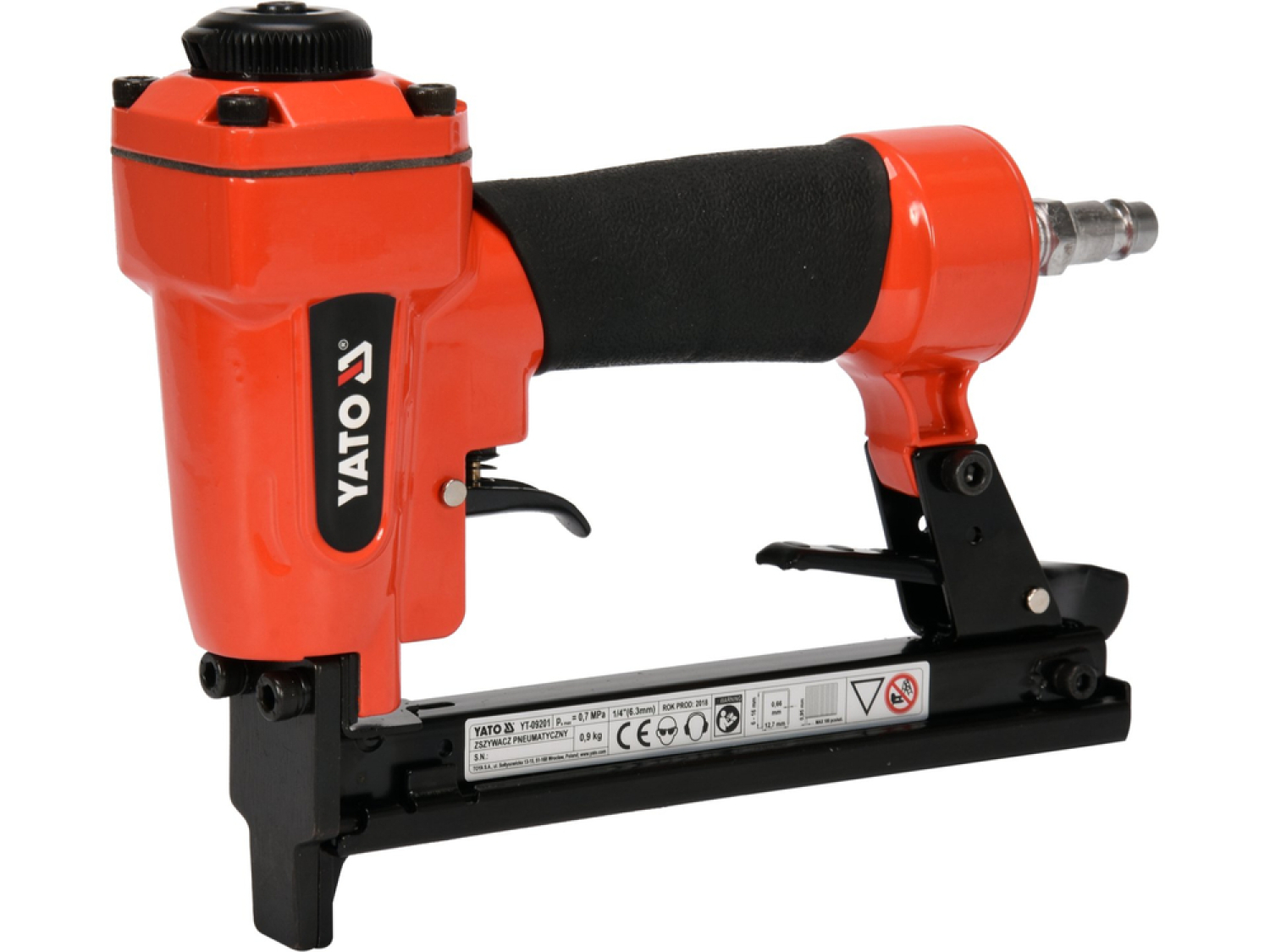

Stapler 6-16Mm YT-09201 YATO Stapler 6-16Mm YT-09201 YATO

Stapler 6-16Mm YT-09201 YATO

Code:
YT-09201
Sorry, the product you are looking for is no longer available. However, you can buy other similar products from the same category or continue shopping in the product catalog.
YATO Read more

Technical specification:

Type Nail gun
Feed Air-powered / pneumatic
Weight, kg 0.8
Working pressure, bar 7
Material Aluminum
Nails \ / clamp length, mm 6 — 16
Magazine capacity, pcs. 100
Connection, inches 1/4"

Description:

The YATO YT-09201 is a professional pneumatic stapler designed for assembly and finishing work. It efficiently drives staples with a spacing of 12.7 mm and lengths ranging from 6 to 16 mm. Featuring a rotary air outlet nozzle and a durable die-cast aluminum body, this tool is both practical and reliable.


  • 360° rotating air outlet nozzle for flexible use
  • Rubber-coated handle for comfortable operation
  • Sequential operating mode for precision
  • Capable of driving staples into hard wood and wood-based materials
  • Easy staple replacement
  • High working speed for efficiency
  • Magazine capacity: 100 staples

Ideal for quick joining of materials in upholstery, decorating, and finishing tasks. Suggested staples are VOREL- INDEK 71970,71971,71972. To operate, simply press the “nose” of the stapler against the surfaces to be joined and pull the trigger.


  • Series: GRF
  • Connecting elements type: staples
  • Connecting elements length: 6-16 mm
  • Connecting elements dimensions: 6-16x0.95x12.7 mm
  • Max. working pressure: 0.7 MPa
  • Recommended working pressure: 0.4-0.7 MPa
  • Air connection diameter (PT): standard
  • Air supply hose inside diameter: 3/8" (9.5 mm)
  • Dispenser capacity: 100
  • Dimensions: 215x50x165 mm
  • Body material: aluminum
  • Handle material: rubber
  • Functions: sequential operating mode
  • Rotary nozzle: yes
  • Fuse: yes
  • Acoustic pressure: 88.0 ± 2.5 dB(A)
  • Acoustic power: 99.0 ± 2.5 dB(A)
  • Vibrations: 3.5 ± 1.5 m/s²
  • Weight: 0.9 kg
  • Application: upholstery, carpentry, finishing works
